Description

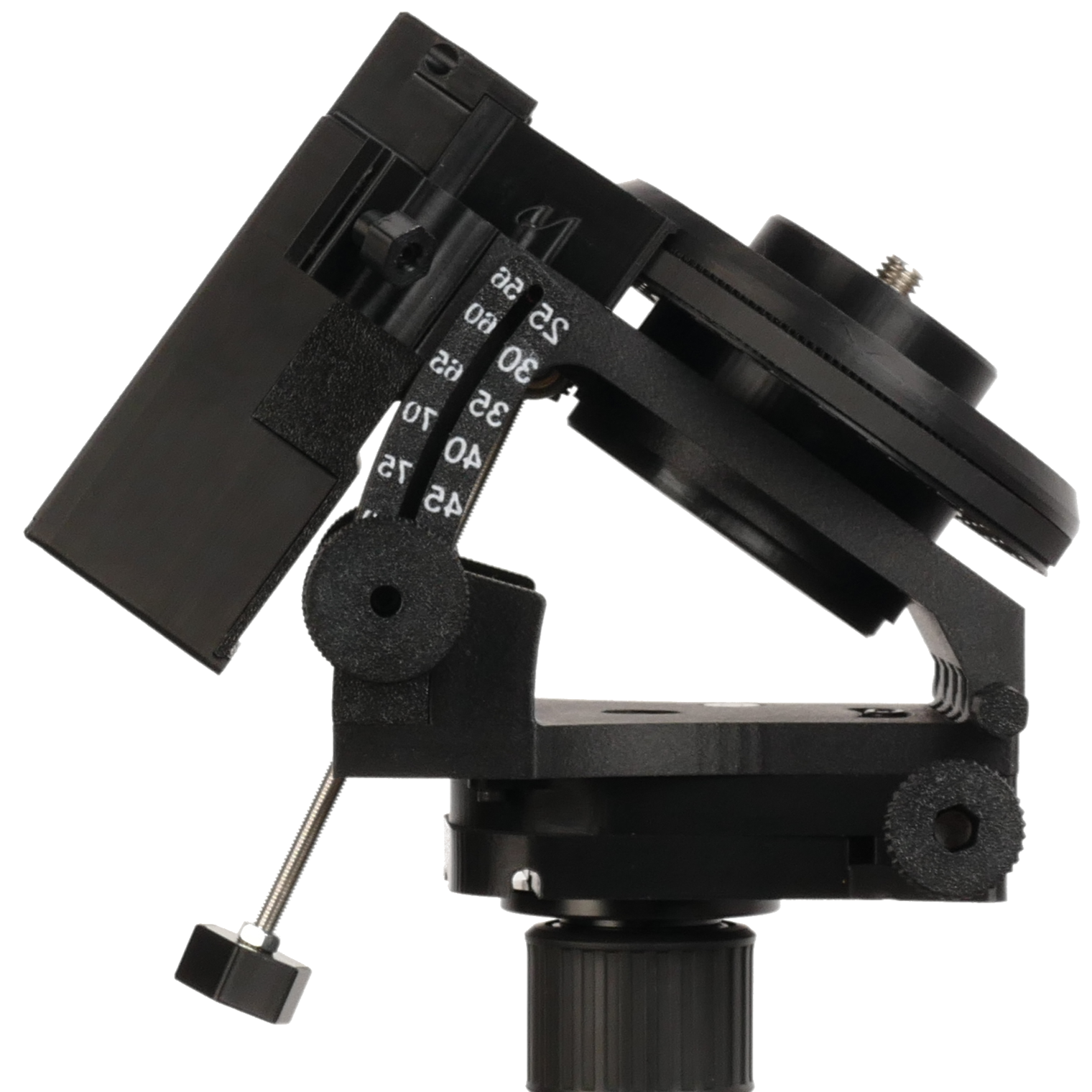

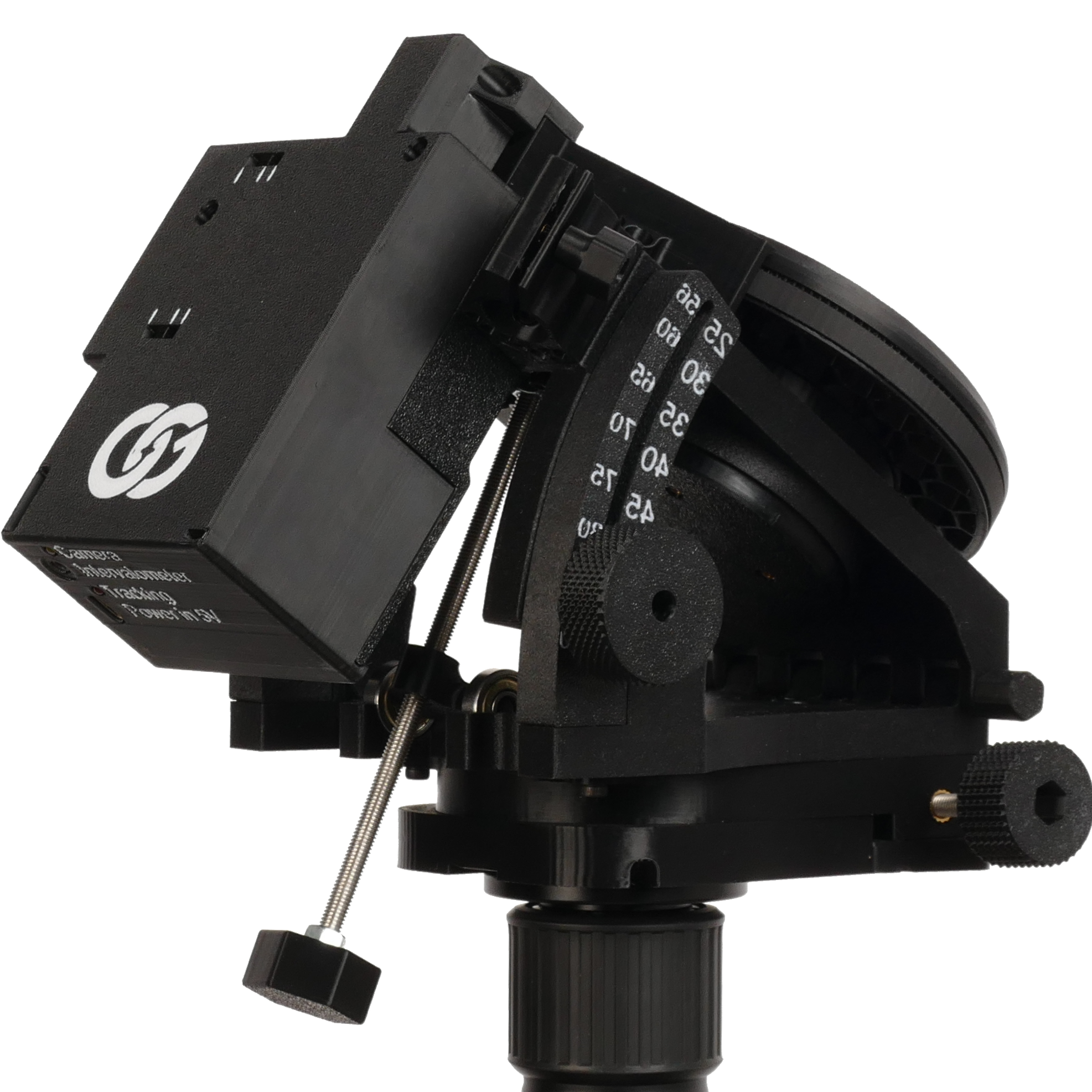

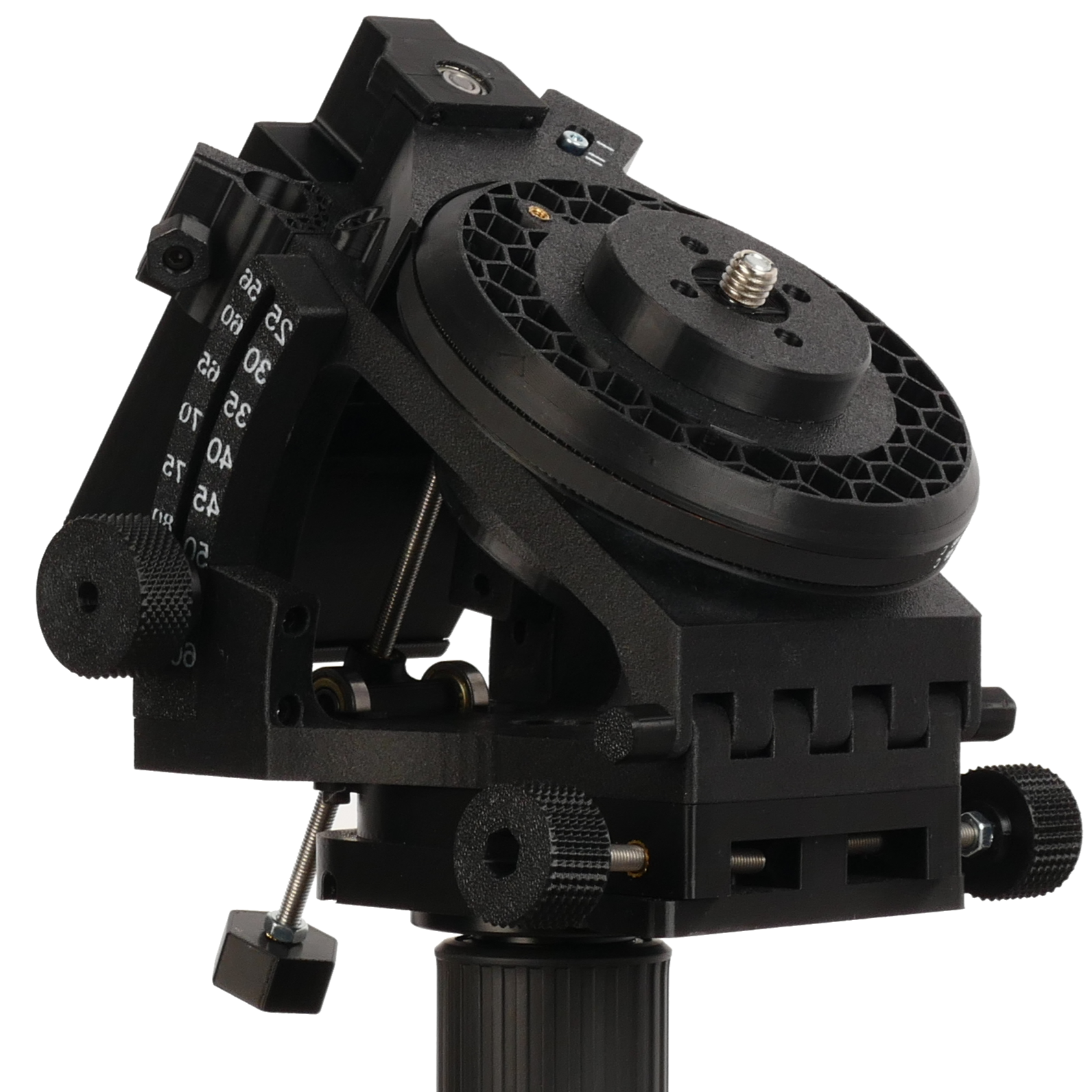

OG star tracker V2 fully build

Key Features:

• Lightweight & Portable: Weighs just 1.4 kg—perfect for travel.
• High Accuracy: Periodic error of just 10″–15″, allowing long exposures without an auto guider.
• Modular & Customizable: Swap between a laser and polar scope, add a ball head, or even upgrade with a manual declination axis.
• Easy Polar Alignment: Simply aim the laser at Polaris—no need for a polar scope.
• Advanced Camera Control: Built-in intervalometer port with dithering support for noise reduction.
• Panning for timeleapse: Create interesting timelapse of night sky
• Sturdy and stable: It can handle 4kg of imaging gear / 5kg of total payload
• Open source: All of the parts are open source
• Integrated buble level
• Manual GOTO ready

Specifications:

• Weight: 1.4 kg
• Max Payload: 4 kg
• Max Focal Length: 400 mm
• Control: Via app or phone web app
• Power: 5V 1A power bank
• Stepper Motor: High-accuracy 0.9° stepper motor with TMC2209 driver
• Build Material: ABS-GF and ABS
• Dimensions: 17.5 × 19 × 11.5 cm
• Intervalometer port: 2,5mm jack port
• AZ adjustment range: 50°
• Latitude adjustment range: -25°, 25°- 90 °
